2.0 L Ingenium Engine
Reconditioning
Our Engine Solutions are Tailored to you and your needs.
- 4-7 day around on most units†
- 6 or 12 Month Warranty*
- Live 24/7 Technical Support UK‑based
*Warranty covers the engine long‑block when serviced per warranty schedule. See full T&Cs. †Turnaround from strip‑down approval; timing varies with parts and queue.
Instant Quote Builder
Get an accurate estimate in 30 seconds. Select your engine's condition and see your recommended service options with pricing.
Engine Condition
Select how your engine is currently behaving
Service Recommendation
Your Quote
What's your engine's current condition?
Seized
Extremely SevereEngine is completely unresponsive - no cranking at all (Battery is ok)
Turns over but doesn't start
SevereEngine cranks but won't fire up and run
Starts but makes engine noise
Mild to SevereEngine runs but has knocking, tapping, or bubbling sounds
Heavy Smoking out the back
Mild to SevereEngine runs but has knocking, tapping, or bubbling sounds
Overheating
Mild to SevereEngine runs but quickly overheating
Other Issues
Describe your issue for a bespoke approach
Why Reconditioning Beats Buying New
72‑Point Restoration Checklist
- ✓Complete strip-down & ultrasonic cleaning
- ✓Cylinder-head resurfacing & valve guide inspection
- ✓Replace timing chain, guides & tensioners
- ✓New piston rings & main bearings
- ✓Turbocharger strip, balance & rebuild
- ✓Cooling system pressure & leak testing
*For full checklist see our Terms of Service.
Cost Comparison
Technical Advantages
Quick Turnaround (For Replacment Units)
Optimised workflow and parallel inspections ensure most Ingenium engines are rebuilt within one work‑week.*
IMI‑Certified Engineers
Our specialists rebuild hundreds of Ingenium units annually to factory tolerances and OEM standards.
Essential Advice
Our goal is simple: to keep you on the road, worry-free. We'll guide you on the best maintenance practices to protect your engine and help ensure you never face the same breakdown again.
Industry‑Leading Warranty
12 months / 12,000 miles* cover
Common Land Rover 2.0 Ingenium Engine Failures
The Land Rover 2.0 Ingenium diesel engines most common faults are:
204DTD – Range Rover Evoque, Land Rover Discovery Sport | 204DTA – Discovery 5, Range Rover Sport, Range Rover Velar

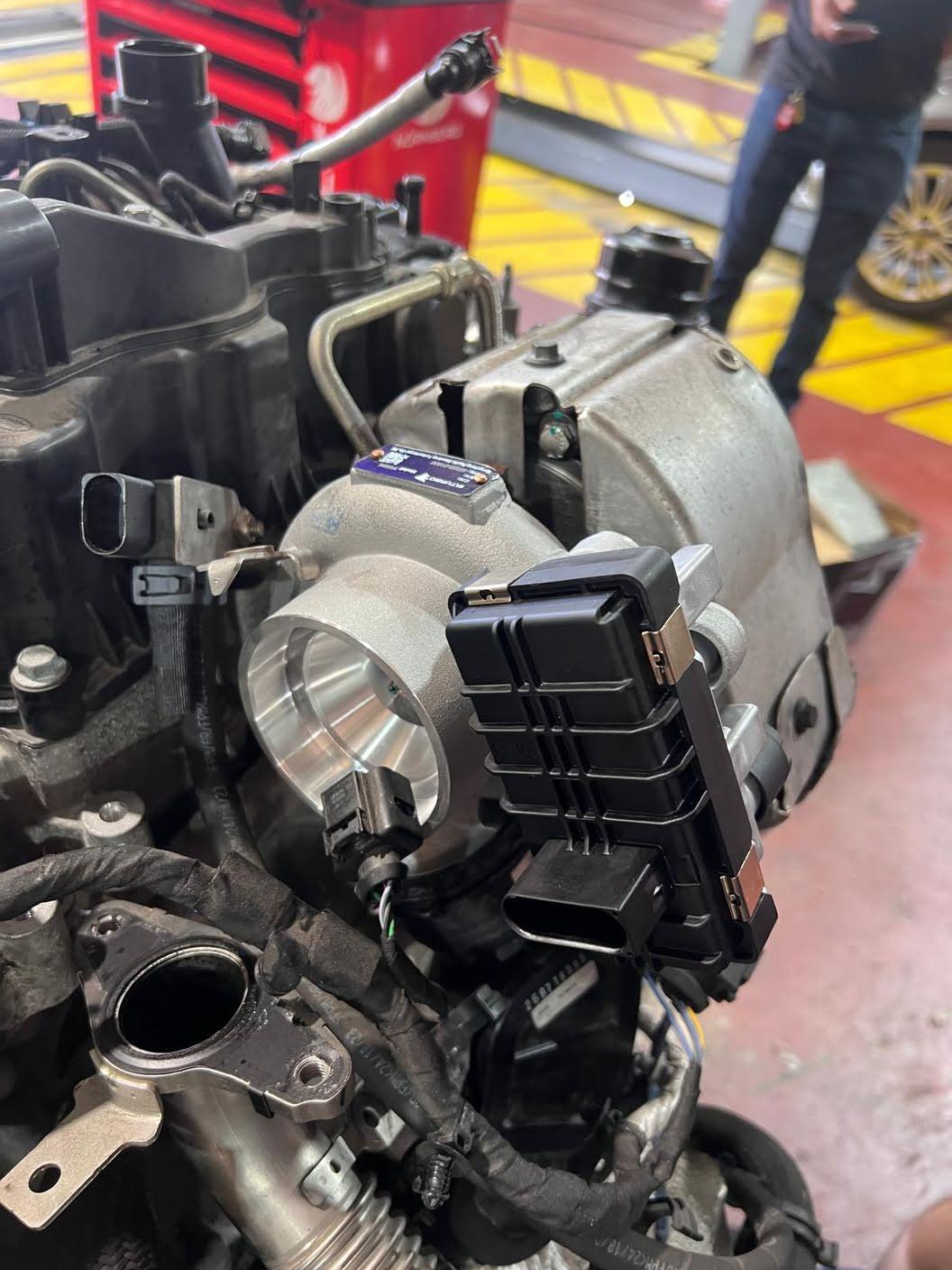

Turbocharger Failure
The turbocharger itself on all diesel Ingenium engines is composed of components and materials that are seemingly not sufficient for its purpose. We commonly find vehicles with failed turbochargers, either as a result of engine failure or the direct cause of engine failure.
Consequence
A common consequence of a failed turbocharger is bent conrods. Excessive oil through the intake causes the engine to hydro-lock. This compresses fluid in the cylinder, which bends conrods – evident by pistons no longer protruding at TDC.
Poor Maintenance
Engine failure can result if an engine is not properly taken care of. Neglecting regular oil changes is a common cause with the Ingenium engine, as it leads to blocked oil galleries and loss of lubrication.
Consequence

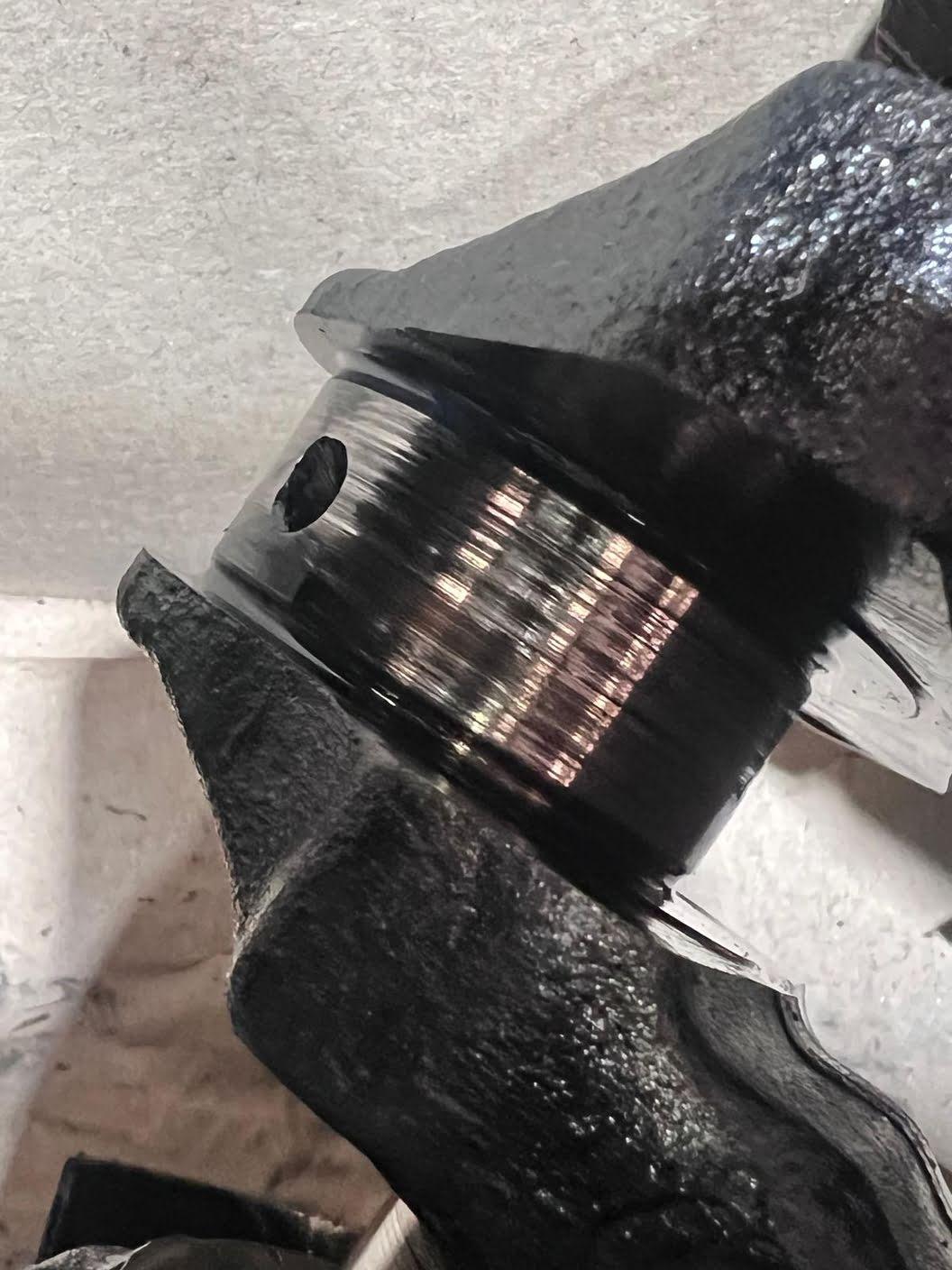

Without correct oil changes, carbon, timing debris and sludge builds up. This blocks the oil pickup and galleries, causing spun bearings and other cascading failures including turbocharger issues.
Timing Failure
Timing chain stretch and plastic guide failure is common. Components wear and drop debris into the oil pickup, starving the engine of oil. This causes timing chain rattling and engine noise.
Consequence
Debris blocks oil pickup causing spun bearings and turbocharger issues. Other damage includes valves, tappets, rocker arms and more.
Fuel Injector Failure
Injectors tend to over-fuel, injecting too much fuel and causing high cylinder temps. The pistons are made of weak material and are very susceptible to damage.
Consequence

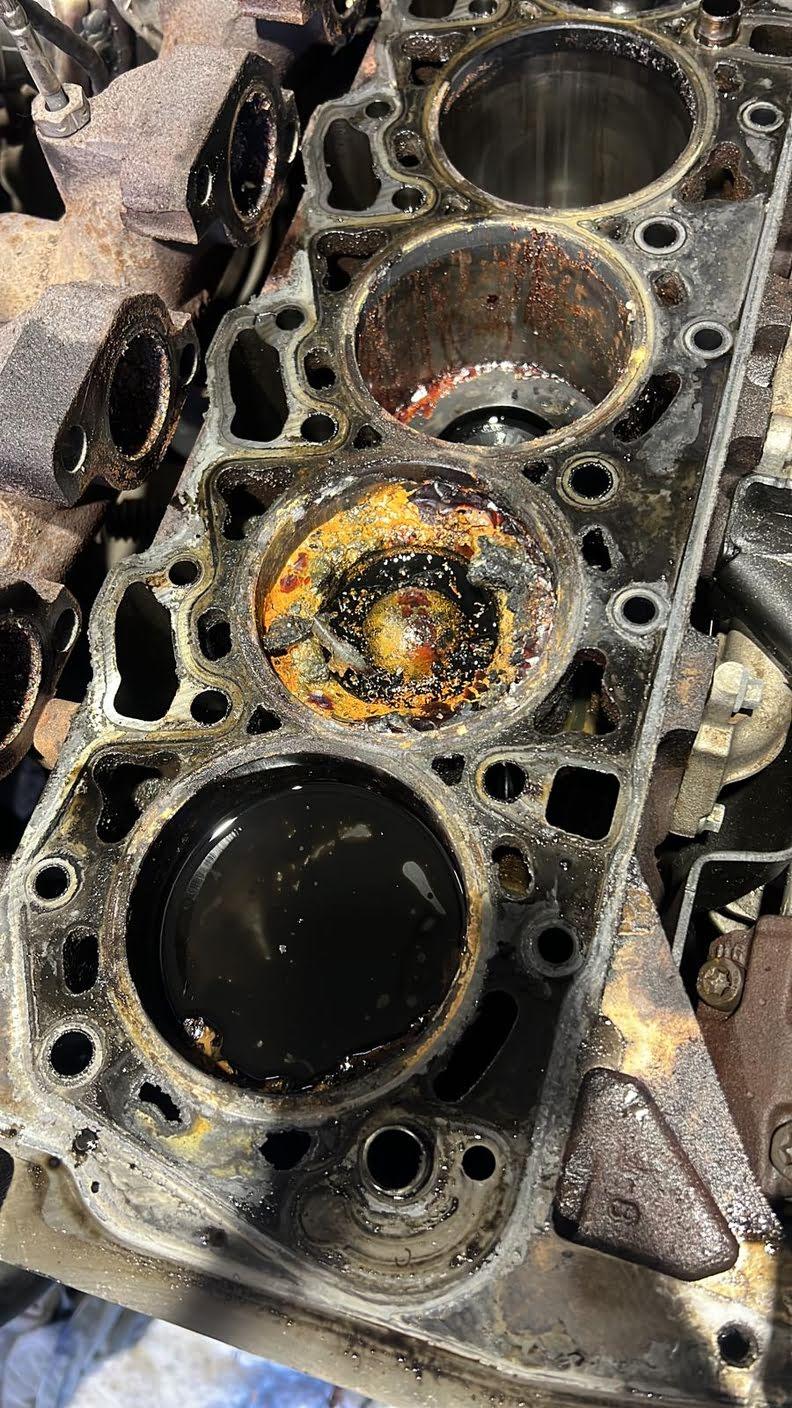

Over-fuelling melts the piston crown, causing loss of compression and cylinder liner damage. Often results in a knocking sound or cracked piston components.
Applicable Engine Codes
These are the most common engine codes used across the Land Rover and Jaguar 2.0 Ingenium family, both petrol and diesel variants:
- ✓204DTD – Range Rover Evoque, Discovery Sport (2.0 L diesel)
- ✓204DTA – Discovery 5, Range Rover Sport, Velar (2.0 L diesel)
- ✓AJ200D – Jaguar XF, XE, F-Pace (Ingenium 2.0 diesel)
- ✓AJ200P – Jaguar E-Pace, Evoque (2.0 L petrol Ingenium)
- ✓PT204 – Petrol Ingenium variant in newer Land Rover models
- ✓DT204 – Alternate designation for 204DTD in technical docs
